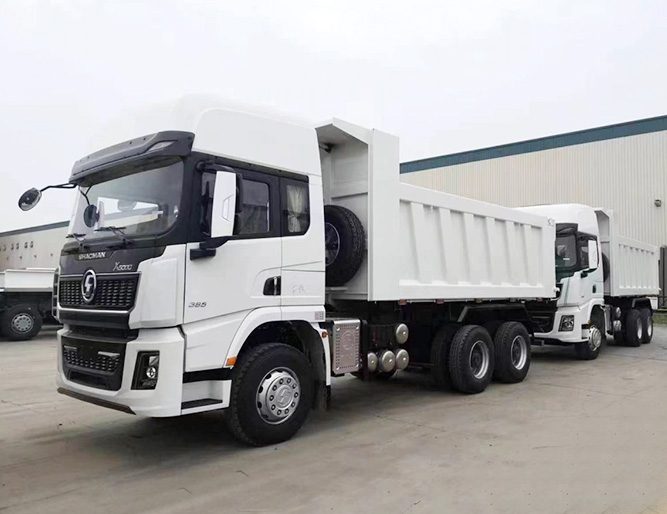

SHACMAN X5000 dump truck 6X4

Basic Parameters
Shacman X5000 Dump Truck 6X4 since the loading carriage can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.
WhatsApp：+8613406983869
Consult Now
Product Description

Product Parameter

Since the loading carriage can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.

1. Classified by appearance: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck

2. Classified by purpose: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck

3. According to the different driving modes, it is also divided into 6x4, 8x4 for unloading and semi-trailer dump trucks.

4. According to different uses, it is also divided into mining dump trucks, used to transport coal, sand and gravel; environmental sanitation and green dump trucks, used to transport garbage, etc.

5. According to the direction of the car rollover, there are also front lift and rollover dump trucks. There are also two-way side dump trucks, which are mainly used in construction projects.



Drive type

6X4

Wheel base(mm)

3775+1400

Overall dimension(mm)

8436x2490×3450

Box dimension(mm)

5600×2300×1500(19.3CBM)

Curb weight(Kg)

12200

Load capacity(Kg)

30000~50000

Max.vehicle speed(Km/h)

77

Cab

X5000(European standard flat roof,luxury configuration,
one and half rows cabin,with single sleeper,A/C)

Engine

Model

ISME385 30

Max.output (kw/HP)

283/385

Max.torque (N•m)

1835@1200rpm

Displacement (ml)

10800

Emission standard

Euro 2/3/4/5

Clutch

Ø340

Gear box

FAST,10JSD140, manual,10 forward&2 reverse gears

Front axle

MAN 7.5Ton

Driving axle

16 Ton MAN double stage,ratio:5.262

Steering gear

Left Hand Drive/Right hand drive,power-assisted

Chassis suspension

Multi leaf spring 10/12

Frame section

850x300 (8+7)mm

Air intake system

Double pipe cyclone air duct+Oil air filter+Common air filter
