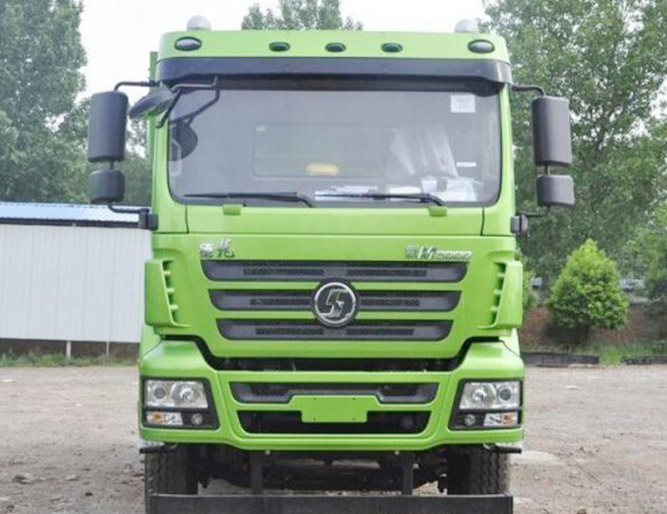

SHACMAN m3000 dump truck
Basic Parameters
--Truck body from 15cbm~20cbm, for sand and clinkers transportation in the city
--Options for tires: 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.
--Standard color: White, Red, Green (Other color is optional)
SHACMAN M3000 light kerb weight 6x4 dump truck for clinker transportation in city
--Truck body from 15cbm~20cbm, for sand and clinkers transportation in the city
--Options for tires: 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.
--Standard color: White, Red, Green (Other color is optional)
Traction type: 6x4
Drive System: LHD(RHD is optional)
Cabin:New M3000 Flat Cabin, one sleeper, Air Conditioner
Engine Brand:WEICHAI
Model: WP10.290E32 EuroII Rated power :290hp (340hp is optional)
Engine displacement: 9.726 liters
Gearbox: FAST 9 Speeds (9JS119)
Clutch: Ф430 Diaphragm type
Steering: ZF technology
Axle: Front 7.5 Ton MAN axle; Rear 16 Ton MAN double reduction axle, ratio:5.262
Max. running speed (km/h): 85
Tire: 12.00R20, 12R22.5
Fuel tank: 400L(Aluminum)
Kerb weight (kg): 11400(8040kg for chassis only)
Payload (kg): 25000
Wheel base (mm): 3775+1400
Dimensions（L*W*H）(mm): 8229x2500x3450
Dump body
5400x2300x1500mm, Steel thickness (mm) :Bottom 8 , side 4.
Hydraulic lifting system: Middle F/T lifting
